STGB20NC60V

very fast IGBT

STGB20NC60V Features

* High frequency operation up to 50 kHz Lower CRES / CIES ratio (no cross-conduction susceptibility) High current capability 1 2 3 1 2 3 Applications

* TO-247 3 1 TO-220 High frequency inverters UPS, motor drivers HF, SMPS and PFC in both hard switch and resonant

STGB20NC60V General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GB20NC60V GP20NC60V GW20NC60V Package D²PAK TO-220 TO-247 Packaging Tape and reel Tub.

STGB20NC60V Datasheet (436.92 KB)

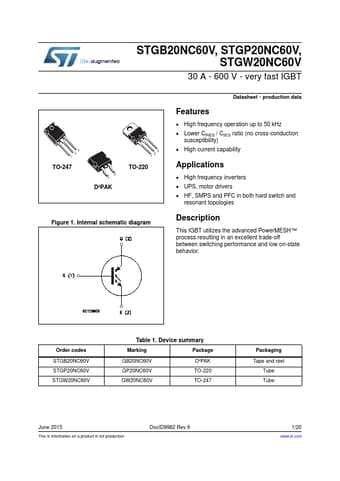

Preview of STGB20NC60V PDF

Datasheet Details

Part number:

STGB20NC60V

Manufacturer:

STMicroelectronics ↗

File Size:

436.92 KB

Description:

Very fast igbt.
