STGB20NC60VT4 very fast IGBT

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GB20NC60V GP20NC60V GW20NC60V Package D²PAK TO-220 TO-247 Packaging Tape and reel Tub.

STGB20NC60VT4 Features

* High frequency operation up to 50 kHz Lower CRES / CIES ratio (no cross-conduction susceptibility) High current capability 1 2 3 1 2 3 Applications

* TO-247 3 1 TO-220 High frequency inverters UPS, motor drivers HF, SMPS and PFC in both hard switch and resonant

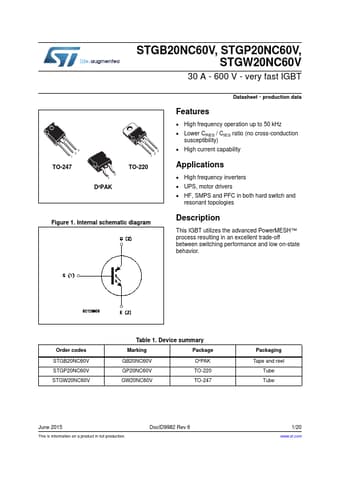

STGB20NC60V-STMicroelectronics.pdf

STGB20NC60VT4 Datasheet Preview — This datasheet PDF includes multiple part numbers: STGB20NC60VT4, STGB20NC60V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STGB20NC60VT4, STGB20NC60V

Manufacturer:

STMicroelectronics ↗

File Size:

436.92 KB

Description:

Very fast igbt.

Note:

This datasheet PDF includes multiple part numbers: STGB20NC60VT4, STGB20NC60V.
Please refer to the document for exact specifications by model.
