STGB7NC60HD Datasheet, Igbt, STMicroelectronics

STGB7NC60HD Features

• Igbt
• Low on-voltage drop (VCE(sat))
• Off losses include tail current
• Losses include diode recovery energy
• High frequency operation up to 70 kHz

PDF File Details

Part number:

STGB7NC60HD

Manufacturer:

STMicroelectronics ↗

File Size:

832.94kb

Download:

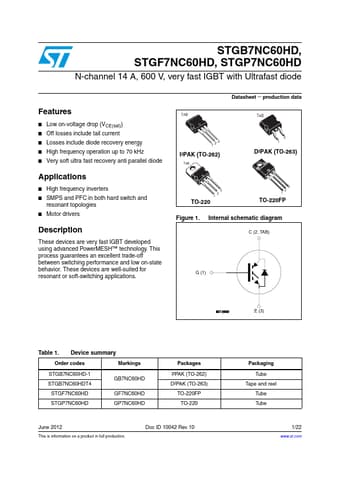

📄 Datasheet

Description:

N-channel igbt. These devices are very fast IGBT developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off betwe

STGB7NC60HD Application

• Applications
• High frequency inverters
• SMPS and PFC in both hard switch and resonant topologies
• Motor drivers Descripti
