STGB10H60DF Datasheet, Igbt, STMicroelectronics

✔ STGB10H60DF Features

✔ STGB10H60DF Application

PDF File Details

Manufacture Logo for STMicroelectronics
STMicroelectronics manufacturer logo

Part number:

STGB10H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

742.46kb

Download:

📄 Datasheet

Description:

Igbt. E(3) NG1E3C2T These devices are IGBTs developed using an advanced proprietary trench gate field- stop structure. These devices ar

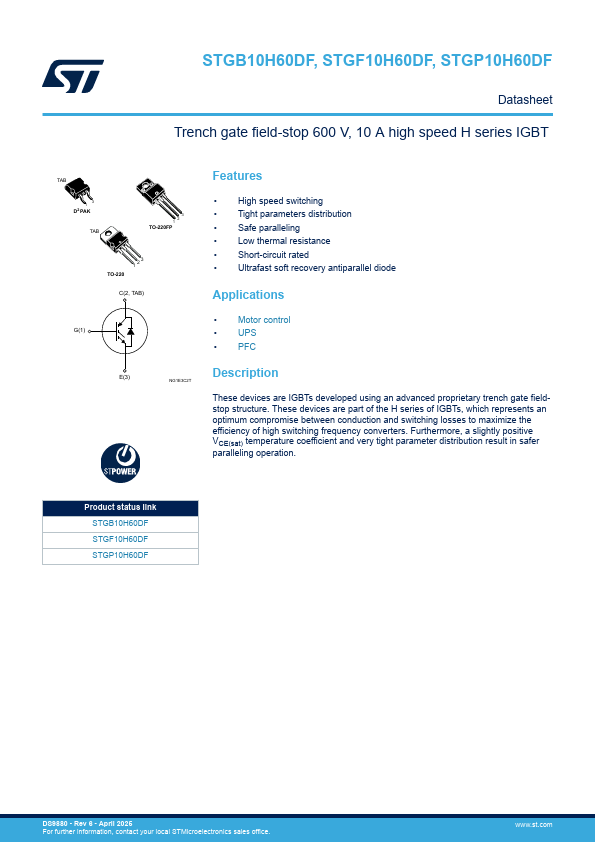

Datasheet Preview: STGB10H60DF 📥 Download PDF (742.46kb)

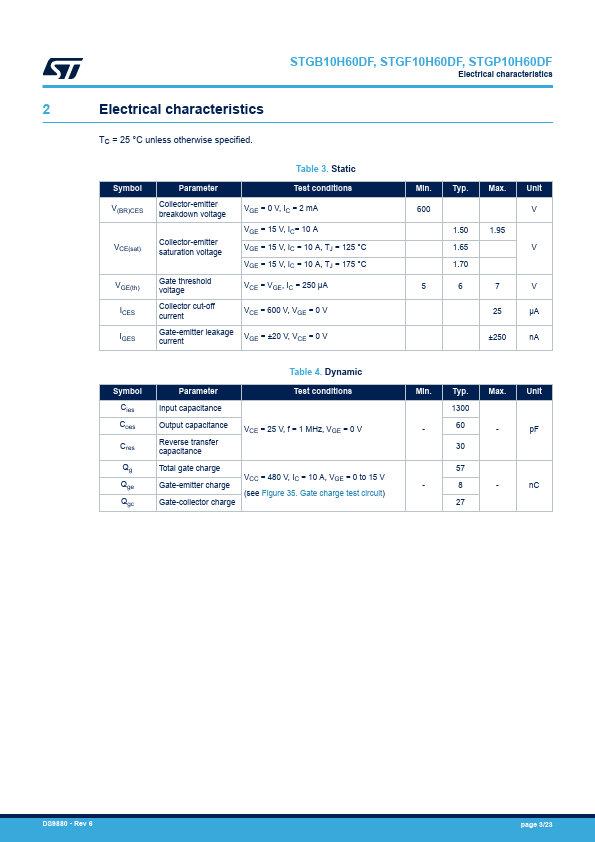

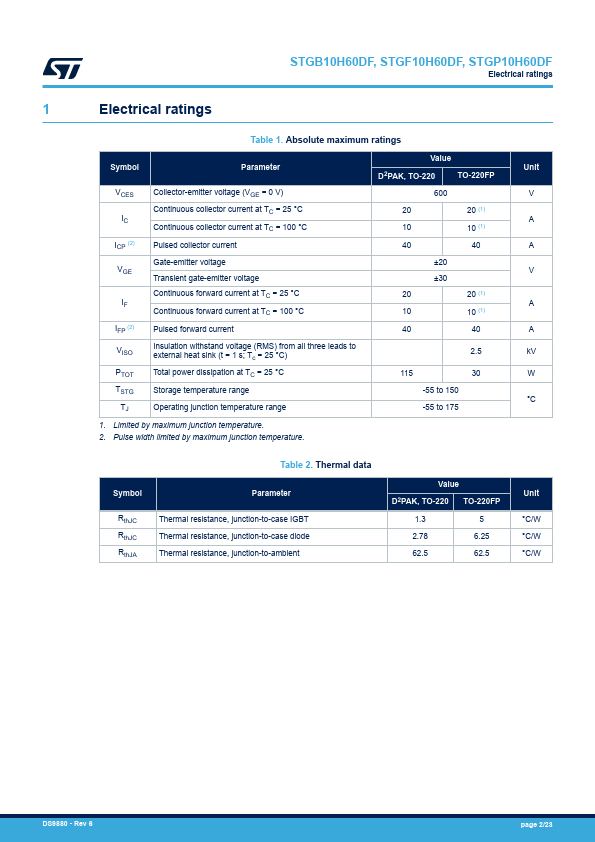

Page 2 of STGB10H60DF Page 3 of STGB10H60DF
