STGB10NC60KDT4

600V short-circuit rugged IGBT

STGB10NC60KDT4 Features

* Lower on voltage drop (VCE(sat))

* Lower Cres / Cies ratio (no cross-conduction susceptibility)

* Very soft ultra fast recovery antiparallel diode

* Short-circuit withstand time 10 μs Applications

* High frequency motor controls

* SMPS and PF

STGB10NC60KDT4 General Description

These devices are very fast IGBTs developed using advanced PowerMESH technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. These devices are well-suited for resonant or soft-switching applications. Product status links STGB10NC60KDT4 ST.

STGB10NC60KDT4 Datasheet (1.42 MB)

Preview of STGB10NC60KDT4 PDF

Datasheet Details

Part number:

STGB10NC60KDT4

Manufacturer:

STMicroelectronics ↗

File Size:

1.42 MB

Description:

600v short-circuit rugged igbt.

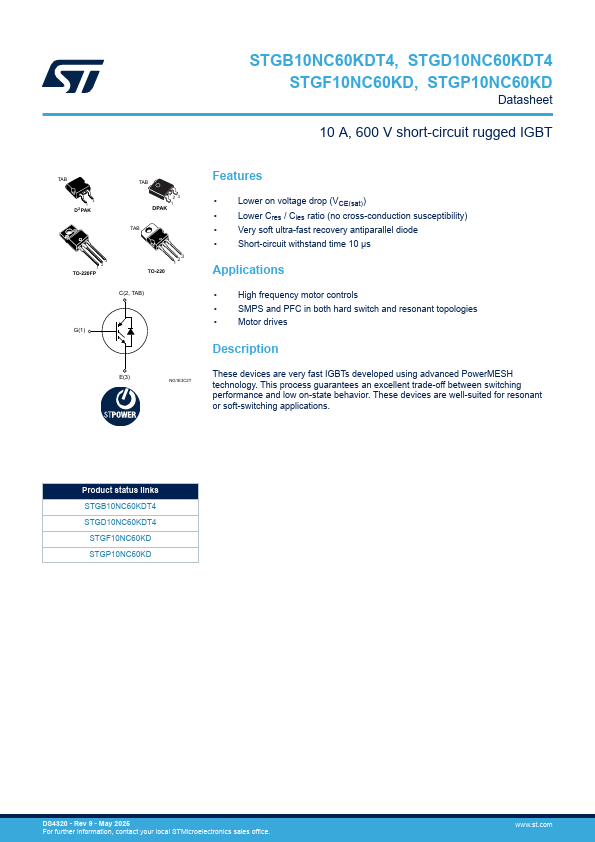

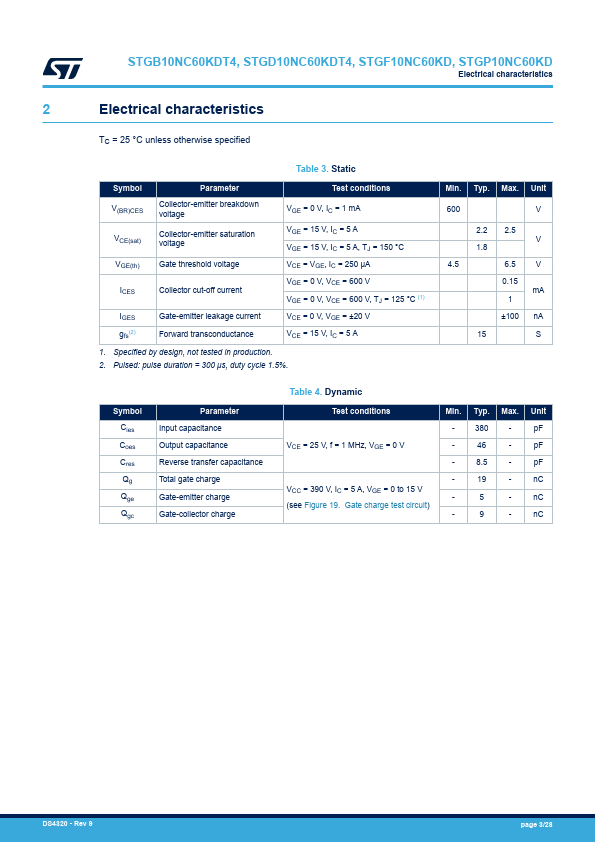

STGB10NC60KDT4, STGD10NC60KDT4 STGF10NC60KD, STGP10NC60KD Datasheet 10 A, 600 V short-circuit rugged IGBT TAB 3 1 D2 PAK TAB 23 1 DPAK TAB 3 2 1 TO.
