STGB14NC60KDT4 Datasheet - STMicroelectronics

600V short-circuit rugged IGBT

STGB14NC60KDT4 Features

* Low on voltage drop (VCE(sat))

* Low Cres / Cies ratio (no cross-conduction susceptibility)

* Very soft ultrafast recovery antiparallel diode

* Short-circuit withstand time 10 μs Applications

* High frequency inverters

* SMPS and PFC in both hard switch and resonant topolog

STGB14NC60KDT4 General Description

These devices are very fast IGBTs developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. Order code STGB14NC60KDT4 STGF14NC60KD STGP14NC60KD Table 1: Device summary Marking Package GB14NC60KD D²PAK.

STGB14NC60KDT4 Datasheet (1.16 MB)

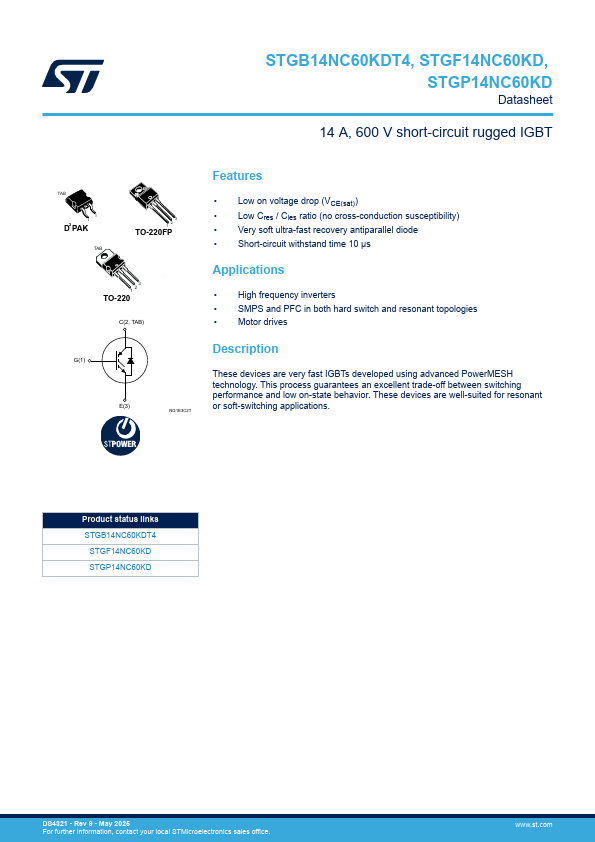

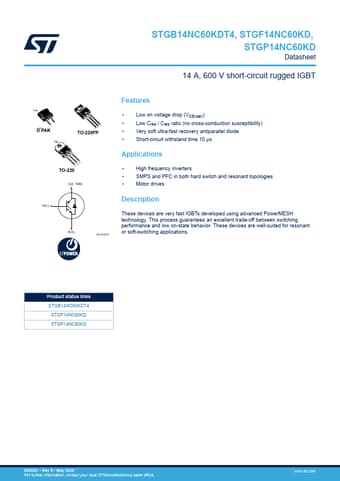

STGB14NC60KDT4 Datasheet Preview — Preview of STGB14NC60KDT4 PDF

Datasheet Details

Part number:

STGB14NC60KDT4

Manufacturer:

STMicroelectronics ↗

File Size:

1.16 MB

Description:

600v short-circuit rugged igbt.
STGB14NC60KDT4, STGF14NC60KD, STGP14NC60KD 14 A, 600 V short-circuit rugged IGBT Datasheet - production data TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-.
