STGF10H60DF

IGBT

STGF10H60DF Features

* High speed switching

* Tight parameters distribution

* Safe paralleling

* Low thermal resistance

* Short-circuit rated

* Ultrafast soft recovery antiparallel diode Applications

* Motor control

* UPS

* PFC Description E(3) N

STGF10H60DF General Description

E(3) NG1E3C2T These devices are IGBTs developed using an advanced proprietary trench gate field- stop structure. These devices are part of the H series of IGBTs, which represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequenc.

STGF10H60DF Datasheet (742.46 KB)

Preview of STGF10H60DF PDF

Datasheet Details

Part number:

STGF10H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

742.46 KB

Description:

Igbt.

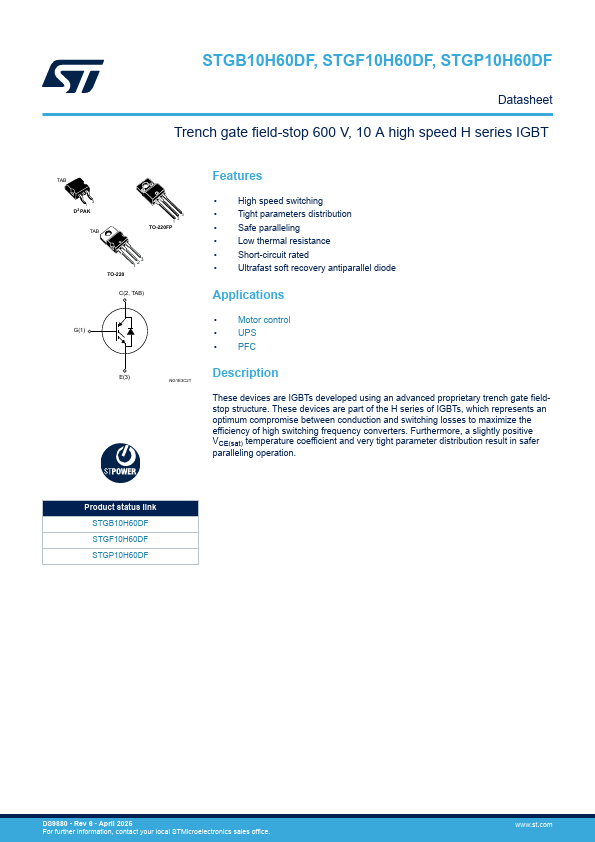

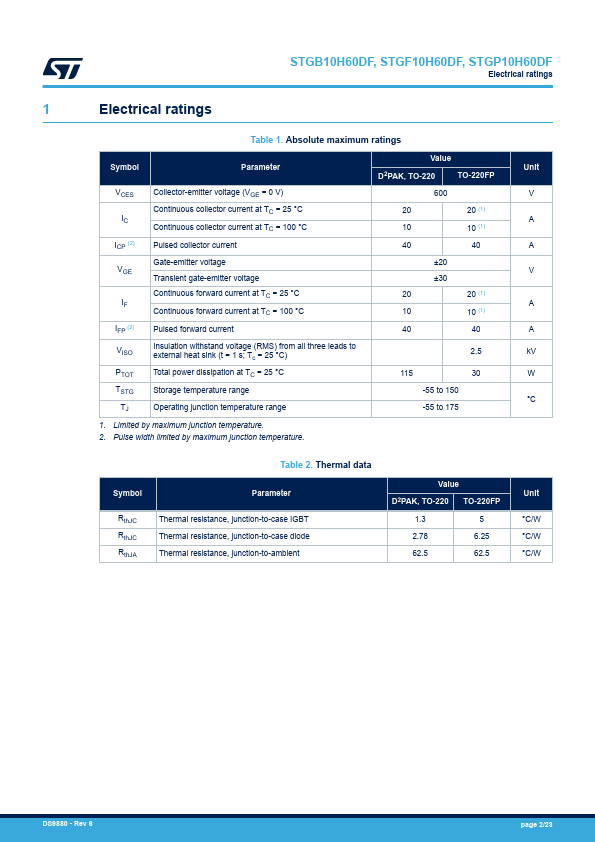

STGB10H60DF, STGF10H60DF, STGP10H60DF Datasheet Trench gate field-stop 600 V, 10 A high speed H series IGBT TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-22.
