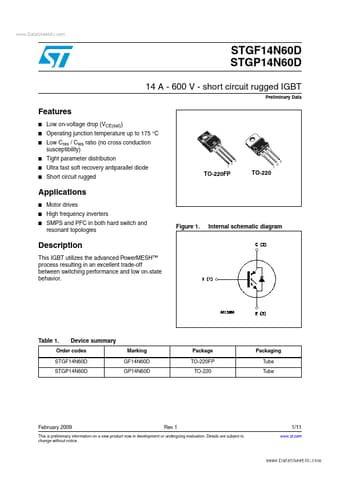

STGF14N60D Datasheet, Igbt, ST Microelectronics

STGF14N60D Features

• Igbt
• Low on-voltage drop (VCE(sat)) Operating junction temperature up to 175 °C Low Cres / Cies ratio (no cross conduction suscep

PDF File Details

Part number:

STGF14N60D

Manufacturer:

STMicroelectronics ↗

File Size:

444.14kb

Download:

📄 Datasheet

Description:

14 a - 600 v - short circuit rugged igbt. This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state

STGF14N60D Application

• Applications
• Motor drives High frequency inverters SMPS and PFC in both hard switch and resonant topologies Figure 1.
