STGF10NC60SD

10A - 600V Fast IGBT

STGF10NC60SD Features

* Very low on-voltage drop (VCE(sat)) Very soft ultra fast antiparallel diode Minimum power losses at 5 kHz in hard switching Optimized performance for medium operating frequencies 3 1 1 2 3 Application

* DPAK TO-220FP Medium frequency motor control Description This I

STGF10NC60SD General Description

This IGBT utilizes the advanced PowerMESHâ„¢ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GD10NC60SD GF10NC60SD Package DPAK TO-220FP Packaging Tape and reel Tube Order codes.

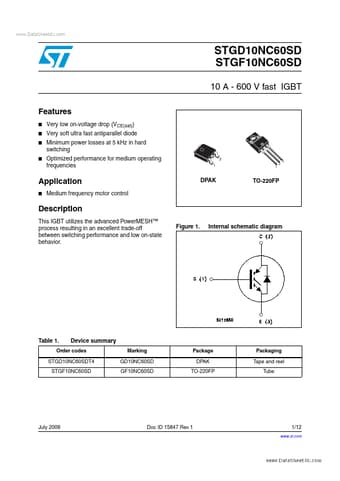

STGF10NC60SD Datasheet (321.28 KB)

Preview of STGF10NC60SD PDF

Datasheet Details

Part number:

STGF10NC60SD

Manufacturer:

STMicroelectronics ↗

File Size:

321.28 KB

Description:

10a - 600v fast igbt.
