STGF15H60DF Datasheet - STMicroelectronics

Trench gate field-stop IGBT

STGF15H60DF General Description

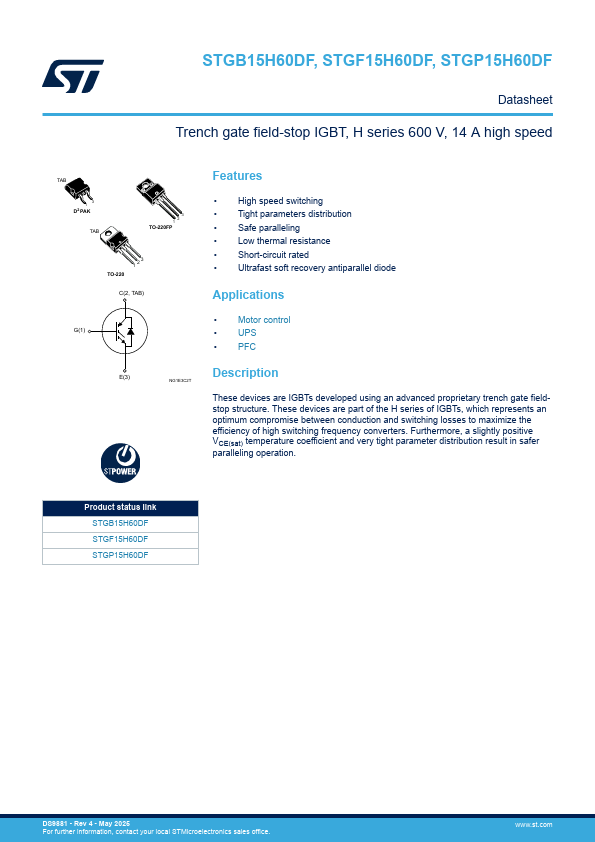

These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. These devices are part of the H series of IGBTs, which represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Furtherm.

STGF15H60DF Datasheet (780.02 KB)

STGF15H60DF Datasheet Preview — Preview of STGF15H60DF PDF

Datasheet Details

Part number:

STGF15H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

780.02 KB

Description:

Trench gate field-stop igbt.
STGB15H60DF, STGF15H60DF, STGP15H60DF Datasheet Trench gate field-stop IGBT, H series 600 V, 14 A high speed TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-2.
