STGF14HF60KD Datasheet - ST Microelectronics

STGF14HF60KD - Short-circuit Rugged IGBT

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

Table 1.

Device summary Marking GF14HF60KD GP14HF60KD Package TO-220FP TO-220 Packaging Tube Tube Order codes STGF14HF60KD STGP14HF60KD August 2009 Doc

STGF14HF60KD Features

* Low on-voltage drop (VCE(sat)) Operating junction temperature up to 175 °C Low Cres / Cies ratio (no cross conduction susceptibility) Tight parameter distribution Ultrafast soft-recovery antiparallel diode Short-circuit rugged 1 2 1 3 2 3 TO-220FP TO-220 App

STGF14HF60KD_STMicroelectronics.pdf

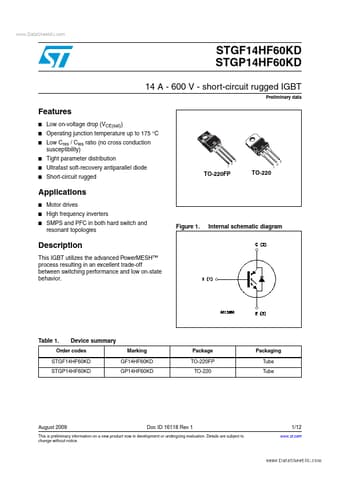

Preview of STGF14HF60KD PDF
STGF14HF60KD Datasheet Preview Page 2 STGF14HF60KD Datasheet Preview Page 3

Datasheet Details

Part number:

STGF14HF60KD

Manufacturer:

STMicroelectronics ↗

File Size:

444.50 KB

Description:

Short-circuit rugged igbt.
