STGF14NC60KD, STGB14NC60KD Datasheet - ST Microelectronics

STGF14NC60KD 600V short-circuit rugged IGBT

These devices are very fast IGBTs developed using advanced PowerMESH technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. These devices are well-suited for resonant or soft-switching applications. Product status links STGB14NC60KDT4 ST.

STGF14NC60KD Features

* Low on voltage drop (VCE(sat))

* Low Cres / Cies ratio (no cross-conduction susceptibility)

* Very soft ultra-fast recovery antiparallel diode

* Short-circuit withstand time 10 μs Applications

* High frequency inverters

* SMPS and PFC in both

STGB14NC60KD_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STGF14NC60KD, STGB14NC60KD. Please refer to the document for exact specifications by model.

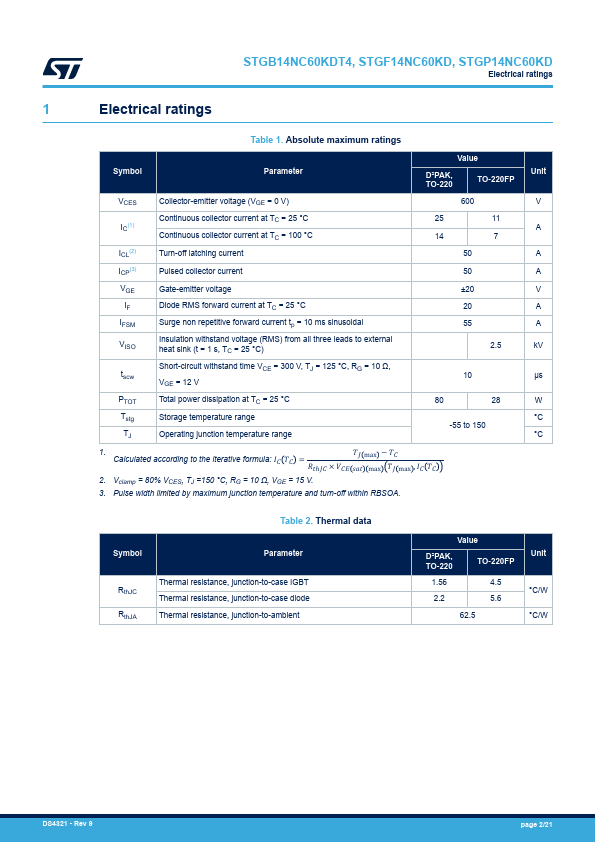

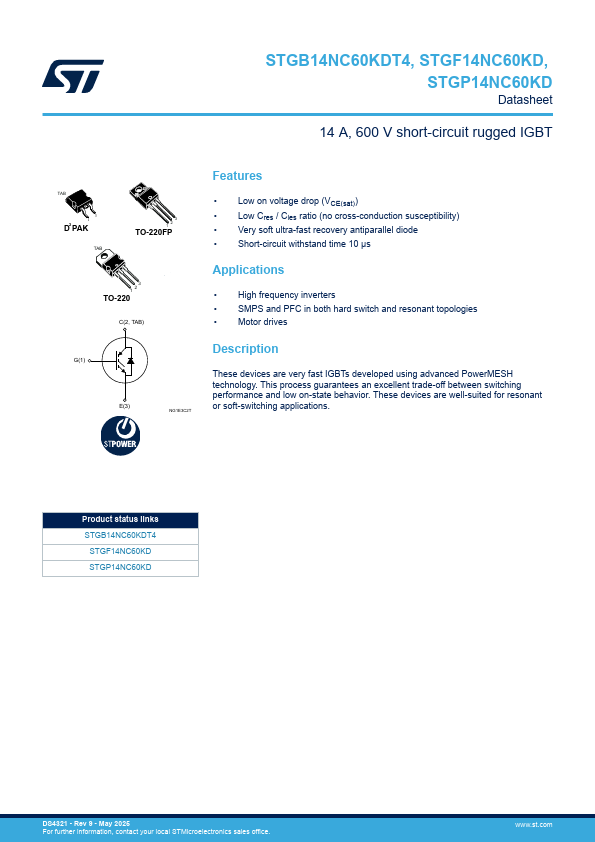

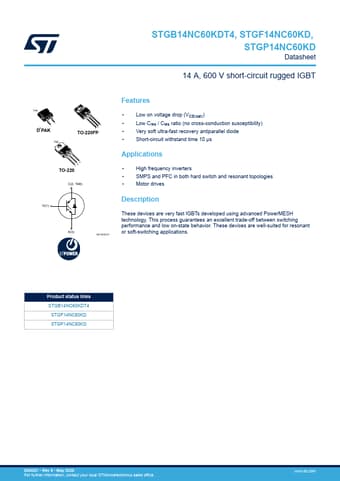

STGF14NC60KD Datasheet Preview Page 2 STGF14NC60KD Datasheet Preview Page 3

Datasheet Details

Part number:

STGF14NC60KD, STGB14NC60KD

Manufacturer:

STMicroelectronics ↗

File Size:

3.44 MB

Description:

600v short-circuit rugged igbt.

Note:

This datasheet PDF includes multiple part numbers: STGF14NC60KD, STGB14NC60KD.
Please refer to the document for exact specifications by model.
