STGP30H60DFB
819.52kb

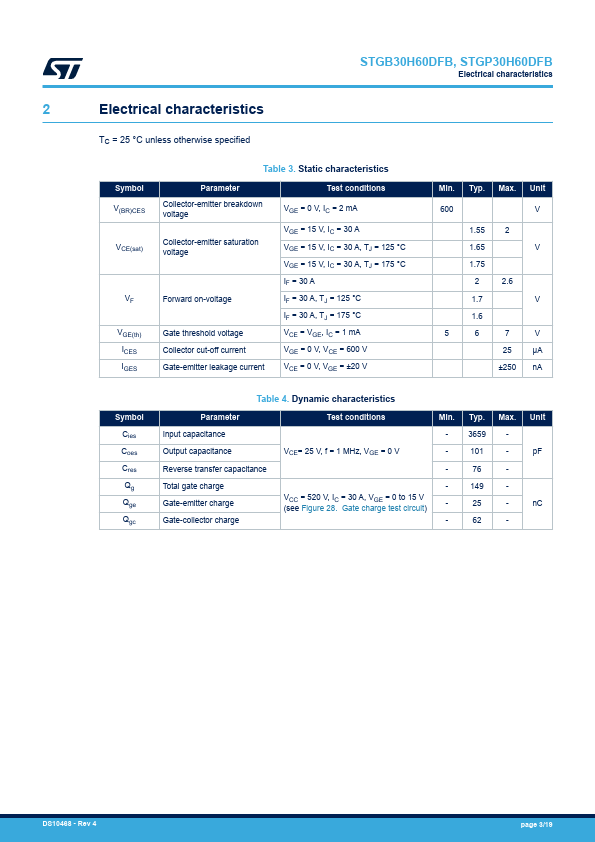

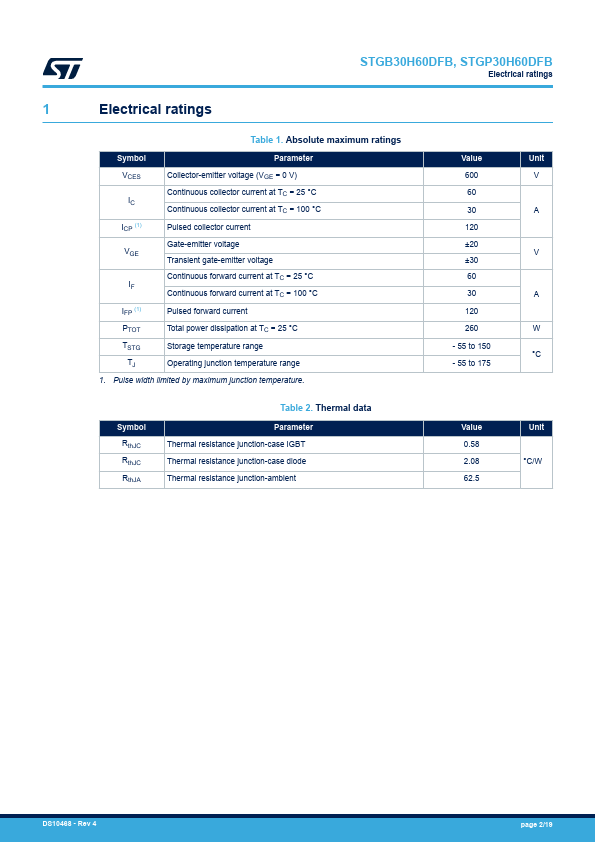

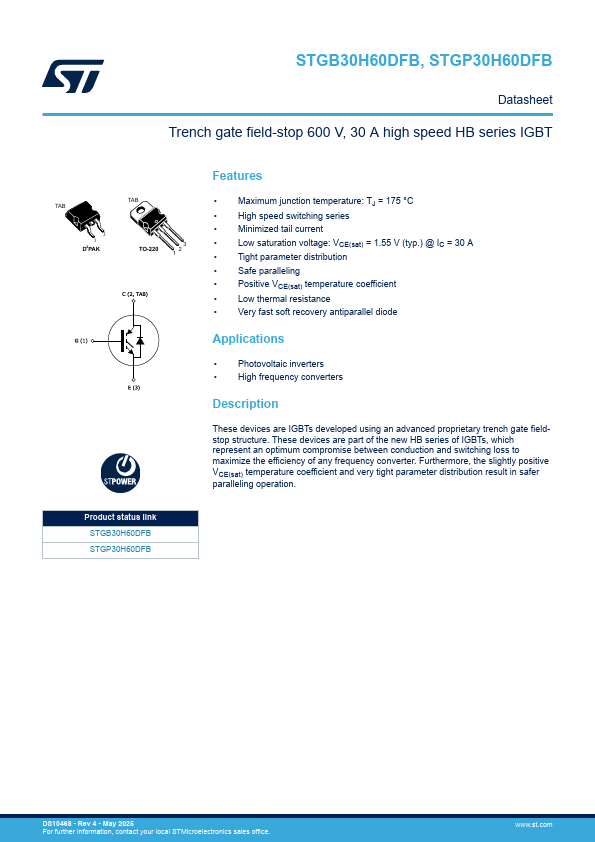

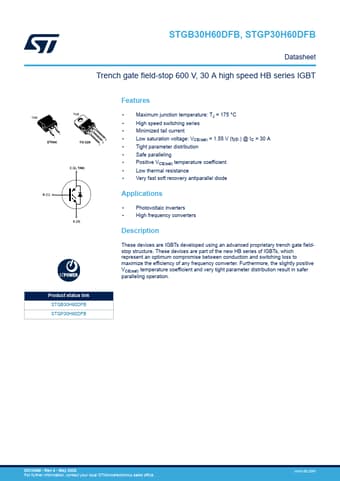

Igbt. These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. These devices are part of the new HB
