STGP30NC60K

short circuit rugged IGBT

STGP30NC60K Features

* Low on-voltage drop (VCE(sat)) Low Cres / Cies ratio (no cross conduction susceptibility) Short circuit withstand time 10 µs 3 1 1 3 2 Applications

* High frequency inverters Motor drivers D²PAK TO-220 Description This IGBT utilizes the advanced PowerMESH™ process r

STGP30NC60K General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GB30NC60K GP30NC60K Package D²PAK TO-220 Packaging Tape and reel Tube Order codes ST.

STGP30NC60K Datasheet (408.10 KB)

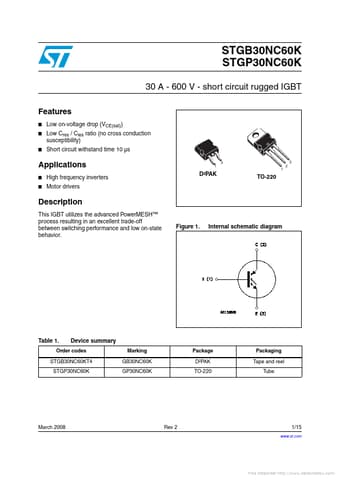

Preview of STGP30NC60K PDF

Datasheet Details

Part number:

STGP30NC60K

Manufacturer:

STMicroelectronics ↗

File Size:

408.10 KB

Description:

Short circuit rugged igbt.
