STGP3NB60KD, STGD3NB60K N-CHANNEL IGBT

ST Microelectronics

Description

STGP3NB60K - STGD3NB60K STGP3NB60KD-STGP3NB60KDFP-STGB3NB60KD N-CHANNEL 3A - 600V - TO-220/DPAK/D2PAK PowerMESH™ IGBT TYPE STGP3NB60K STGD3NB60K STGP3.
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH.

📥 Download Datasheet

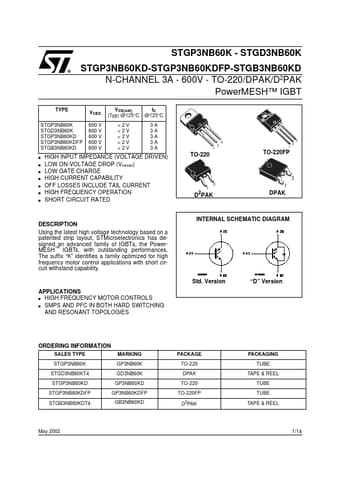

STGP3NB60KD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP3NB60KD, STGD3NB60K. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STGP3NB60KD, STGD3NB60K
Manufacturer: STMicroelectronics ↗
File Size: 707.95 KB
Datasheet: STGD3NB60K_STMicroelectronics.pdf
Description: N-CHANNEL IGBT
Note: This datasheet PDF includes multiple part numbers: STGP3NB60KD, STGD3NB60K.
Please refer to the document for exact specifications by model.

Applications

* with short circuit withstand capability. Std. Version APPLICATIONS HIGH FREQUENCY MOTOR CONTROLS s SMPS AND PFC IN BOTH HARD SWITCHING AND RESONANT TOPOLOGIES s “D” Version ORDERING INFORMATION SALES TYPE STGP3NB60K STGD3NB60KT4 STGP3NB60KD STGP3NB60KDFP STGB3NB60KDT4 MARKING GP3NB60K GD3NB60K GP3
