STGP3NC120HD

IGBT

STMicroelectronics

STGP3NC120HD Features

* High voltage capability

* High speed

* Very soft ultrafast recovery anti-parallel diode Applications

* Home appliance

* Lighting Description This high voltage and very fast IGBT shows an excellent trade-off between low conduction losses and fast switching performance. It is des

STGP3NC120HD General Description

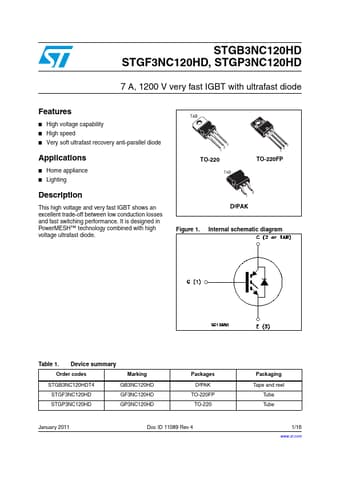

This high voltage and very fast IGBT shows an excellent trade-off between low conduction losses and fast switching performance. It is designed in PowerMESH™ technology combined with high voltage ultrafast diode. TAB 3 2 1 TO-220 TAB 3 2 1 TO-220FP 3 1 D²PAK Figure 1. Internal schematic diagram .
