STGP3NB60HD Datasheet, Igbt, ST Microelectronics

PDF File Details

Part number:

STGP3NB60HD

Manufacturer:

STMicroelectronics ↗

File Size:

104.26kb

Download:

📄 Datasheet

Description:

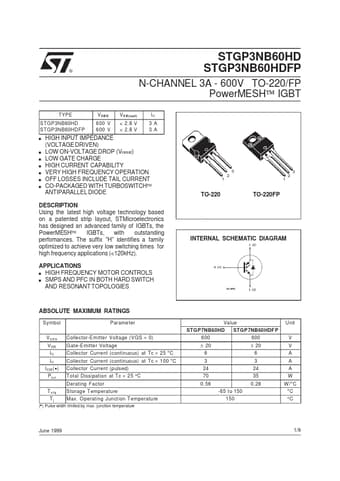

N-channel igbt. Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBT

STGP3NB60HD Application

• Applications (<120kHz). APPLICATIONS s HIGH FREQUENCY MOTOR CONTROLS s SMPS AND PFC IN BOTH HARD SWITCH AND RESONANT TOPOLOGIES INTERNAL SCHEMATIC
