STGW60V60DF, STGW60V60DF-1 Datasheet - STMicroelectronics

STGW60V60DF 650V 60A IGBT

These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. The device is part of the V series IGBTs, which represent an optimum compromise between conduction and switching losses to maximize the efficiency of very high frequency converters. Furthermore, the posi.

STGW60V60DF Features

* Maximum junction temperature: TJ = 175 °C

* Tail-less switching off

* VCE(sat) = 1.85 V (typ.) @ IC = 60 A

* Tight parameter distribution

* Safe paralleling

* Low thermal resistance

* Very fast soft recovery antiparallel diode Applications

STGW60V60DF-1-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STGW60V60DF, STGW60V60DF-1. Please refer to the document for exact specifications by model.

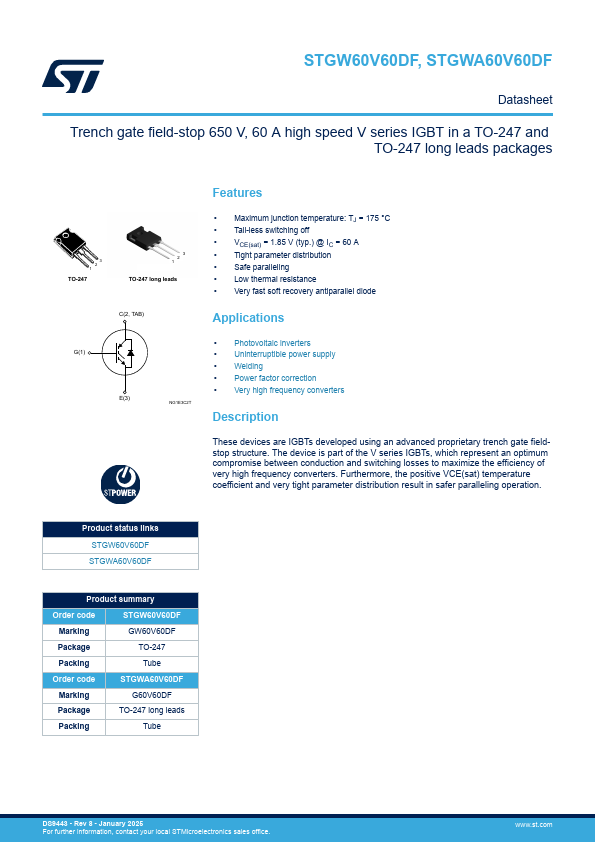

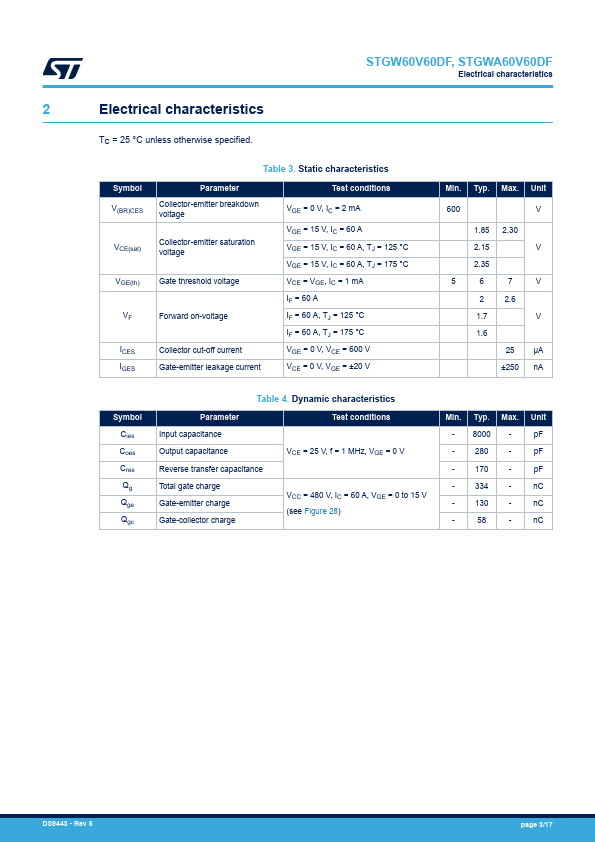

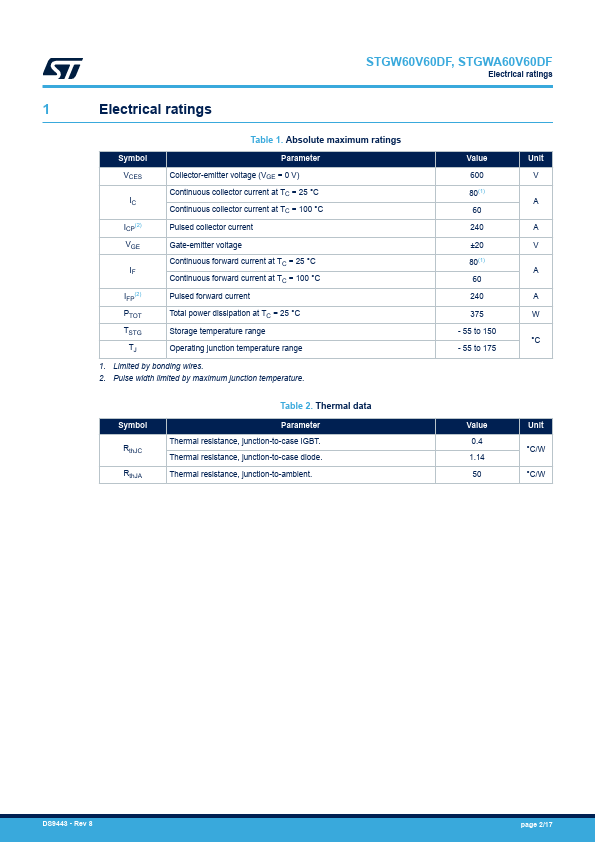

STGW60V60DF Datasheet Preview Page 2 STGW60V60DF Datasheet Preview Page 3
