STH22N95K5-2AG - Automotive-grade N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

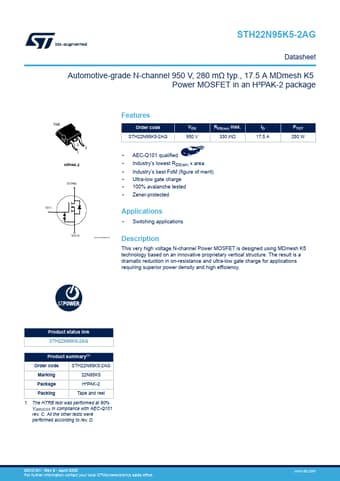

STH22N95K5-2AG Datasheet Preview — Preview of STH22N95K5-2AG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STH22N95K5-2AG
Manufacturer	STMicroelectronics ↗
File Size	455.23 KB
Description	Automotive-grade N-channel Power MOSFET
Datasheet	STH22N95K5-2AG-STMicroelectronics.pdf

STH22N95K5-2AG Product details

Description

This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure.

Features

Order code STH22N95K5-2AG VDS 950 V RDS(on) max. 330 mΩ ID 17.5 A PTOT 250 W.
AEC-Q101 qualified.
Industry’s lowest RDS(on) x area.
Industry’s best FoM (figure of merit).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected.
