STH1061 Datasheet - SEMTECH ELECTRONICS

STH1061 NPN Plastic Power Transistor

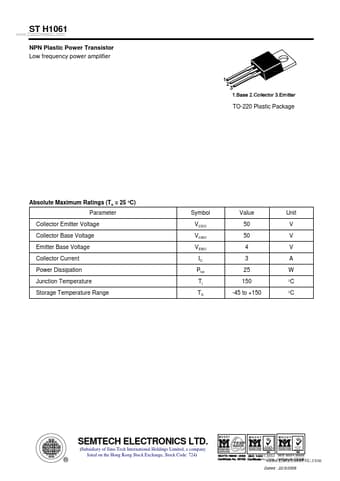

www.DataSheet4U.com ST H1061 NPN Plastic Power Transistor Low frequency power amplifier TO-220 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range Symbol VCEO VCBO VEBO IC Ptot Tj TS Value 50 50 4 3 25 150 -45 to +150 Unit V V V A W O C C O SEMTECH ELECTRONICS LTD. (Subsidiary of Sino-Tech International Holdings Limited, a com.

STH1061_SEMTECHELECTRONICS.pdf

Preview of STH1061 PDF
STH1061 Datasheet Preview Page 2 STH1061 Datasheet Preview Page 3

Datasheet Details

Part number:

STH1061

Manufacturer:

SEMTECH ELECTRONICS

File Size:

215.58 KB

Description:

Npn plastic power transistor.
