STH10NC60FI

N-CHANNEL Power MOS MOSFET

STH10NC60FI Datasheet (337.54 KB)

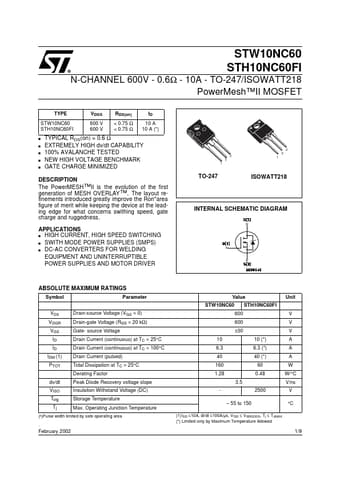

Preview of STH10NC60FI PDF

Datasheet Details

Part number:

STH10NC60FI

Manufacturer:

STMicroelectronics ↗

File Size:

337.54 KB

Description:

N-channel power mos mosfet.
N-CHANNEL 600V - 0.6Ω - 10A - TO-247/ISOWATT218 PowerMesh™II MOSFET TYPE STW10NC60 STH10NC60FI s s s s s STW10NC60 STH10NC60FI VDSS 600 V 600 V RDS.

STH10NC60FI General Description

The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. The layout refinements introduced greatly improve the Ron
*area figure of merit while keeping the device at the leading edge for what concerns swithing speed, gate charge and ruggedness. APPLICATIONS HIGH CURRENT, HIGH SP.
