STH10N80K5-2AG

Automotive-grade N-channel Power MOSFET

STMicroelectronics

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	STMicroelectronics	STH10N80K5-2AG	MOSFET N-CH 800V 8A H2PAK-2	DigiKey	791	500 units	$2.45	🛒 Buy Now

STH10N80K5-2AG Datasheet (419.85 KB)

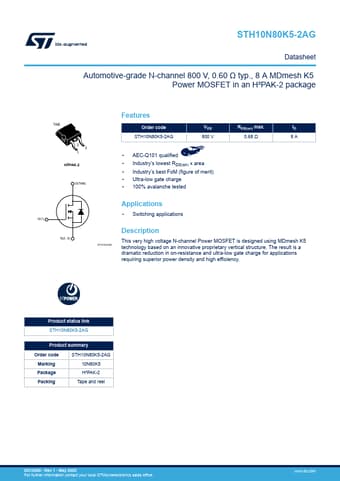

STH10N80K5-2AG Datasheet Preview — Preview of STH10N80K5-2AG PDF

Datasheet Details

Part number:

STH10N80K5-2AG

Manufacturer:

STMicroelectronics ↗

File Size:

419.85 KB

Description:

Automotive-grade n-channel power mosfet.
STH10N80K5-2AG Datasheet Automotive-grade N-channel 800 V, 0.60 Ω typ., 8 A MDmesh K5 Power MOSFET in an H²PAK-2 package TAB 23 1 H2PAK-2 D(TAB) Fea.

STH10N80K5-2AG Features

* Order code STH10N80K5-2AG VDS RDS(on) max. ID 800 V 0.68 Ω 8A

* AEC-Q101 qualified

* Industry’s lowest RDS(on) x area

* Industry’s best FoM (figure of merit)

* Ultra-low gate charge

* 100% avalanche tested G(1) S(2, 3) Applications

* Switching

STH10N80K5-2AG General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Product st.
