STH240N10F7-6 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STH240N10F7-6 General Description

G(1) G(1) These N-channel Power MOSFETs utilize STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. S(2, 3) for H2PAK-2 S(2, 3, 4, 5, 6, 7) .

STH240N10F7-6 Datasheet (629.10 KB)

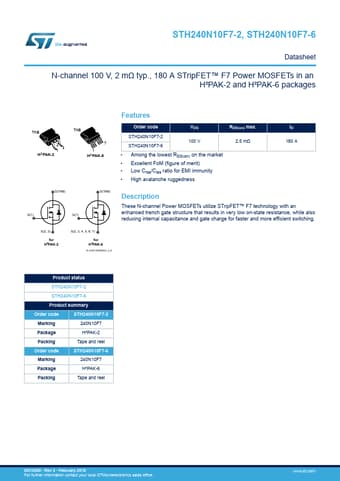

Preview of STH240N10F7-6 PDF

Datasheet Details

Part number:

STH240N10F7-6

Manufacturer:

STMicroelectronics ↗

File Size:

629.10 KB

Description:

N-channel power mosfet.
STH240N10F7-2, STH240N10F7-6 Datasheet N-channel 100 V, 2 mΩ typ., 180 A STripFET™ F7 Power MOSFETs in an H²PAK-2 and H²PAK-6 packages TAB 23 1 H2 PA.
