STH240N10F7-2 - N-CHANNEL POWER MOSFET

STMicroelectronics

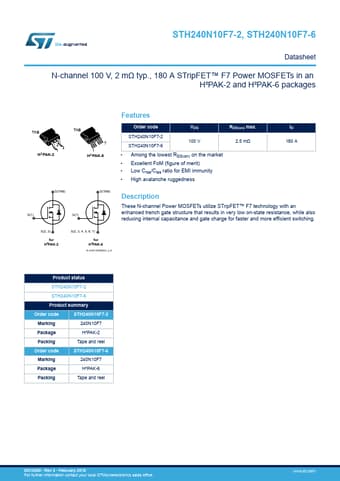

STH240N10F7-2 Datasheet Preview — Preview of STH240N10F7-2 PDF

Datasheet Details

Part number	STH240N10F7-2
Manufacturer	STMicroelectronics ↗
File Size	629.10 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STH240N10F7-2-STMicroelectronics.pdf

STH240N10F7-2 Product details

Description

G(1) G(1) These N-channel Power MOSFETs utilize STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.S(2, 3) for H2PAK-2 S(2, 3, 4, 5, 6, 7) for H2PAK-6 N-CHG1DTABS23_2_6 Product status STH240N10F7-2 STH240N10F7-6 Product summary Order code STH240N10F7-2 Marking 240N10F7 Package H²PAK-2 Packing Tape and reel Order code STH240

Features

Order code VDS RDS(on) max. STH240N10F7-2 STH240N10F7-6 100 V 2.5 mΩ.
Among the lowest RDS(on) on the market.
Excellent FoM (figure of merit).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness ID 180 A D(TAB) D(TAB).
