STH265N6F6-2AG - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

STH265N6F6-2AG Datasheet Preview — Preview of STH265N6F6-2AG PDF

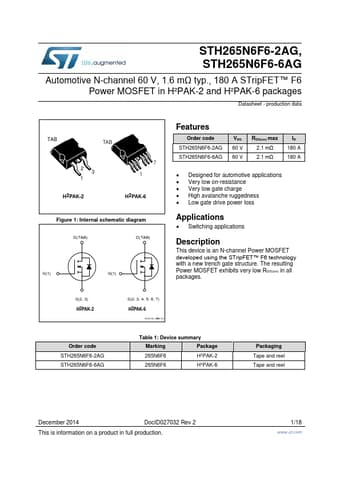

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STH265N6F6-2AG
Manufacturer	STMicroelectronics ↗
File Size	550.29 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STH265N6F6-2AG-STMicroelectronics.pdf

STH265N6F6-2AG Product details

Description

This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure.

Features

Order code STH265N6F6-2AG STH265N6F6-6AG VDS 60 V 60 V RDS(on) max 2.1 mΩ 2.1 mΩ ID 180 A 180 A.
Designed for automotive.
