STI19NM65N Datasheet - STMicroelectronics

Power MOSFET

STI19NM65N Features

* Type STB19NM65N STF19NM65N STI19NM65N STP19NM65N STW19NM65N VDSS (@Tjmax) 710 V 710 V 710 V 710 V 710 V RDS(on) max < 0.27 Ω < 0.27 Ω < 0.27 Ω < 0.27 Ω < 0.27 Ω ID 3 15.5 A 15.5 A(1) 15.5 A 15.5 A 15.5 A 1 2 3 12 TO-220 3 1 2 I²PAK TO-220FP 3 1 2 3 1. Limited only by maximum temperature allo

STI19NM65N General Description

This series of devices implements the second generation of MDmesh™ Technology. This revolutionary Power MOSFET associates a new vertical structure to the Company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high effi.

STI19NM65N Datasheet (563.71 KB)

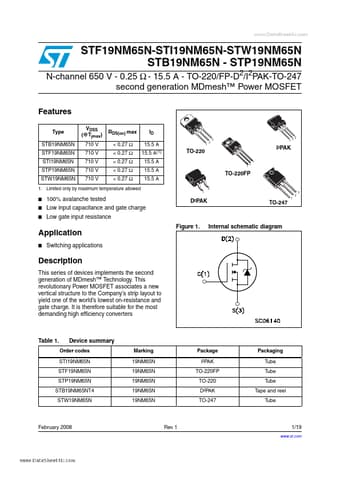

Preview of STI19NM65N PDF

Datasheet Details

Part number:

STI19NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

563.71 KB

Description:

Power mosfet.
www.DataSheet4U.com STF19NM65N-STI19NM65N-STW19NM65N STB19NM65N - STP19NM65N N-channel 650 V - 0.25 Ω - 15.5 A - TO-220/FP-D2/I2PAK-TO-247 second gen.
