STI24NM65N

N-channel Power MOSFET

STI24NM65N Features

* www.DataSheet4U.com Type VDSS (@TJmax) 710 V 710 V 710 V 710 V 710 V RDS(on) max < 0.19 Ω < 0.19 Ω < 0.19 Ω < 0.19 Ω < 0.19 Ω ID 3 STB24NM65N STI24NM65N STF24NM65N STP24NM65N STW24NM65N 19 A 19 A 19 A(1) 19 A 19 A 1 2 3 12 TO-220 3 1 I²PAK D²PAK 3 1 2 1. Limited only by maximum temperatu

STI24NM65N General Description

This series of devices is designed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding hi.

STI24NM65N Datasheet (593.66 KB)

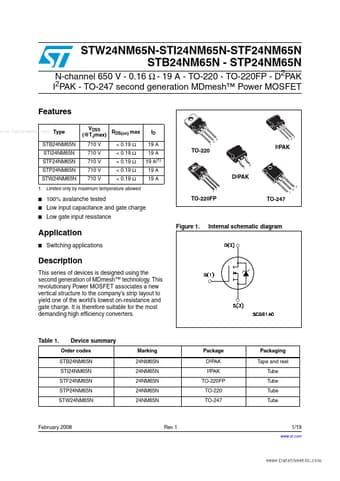

Preview of STI24NM65N PDF

Datasheet Details

Part number:

STI24NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

593.66 KB

Description:

N-channel power mosfet.
STW24NM65N-STI24NM65N-STF24NM65N STB24NM65N - STP24NM65N N-channel 650 V - 0.16 Ω - 19 A - TO-220 - TO-220FP - D2PAK I2PAK - TO-247 second generation .
