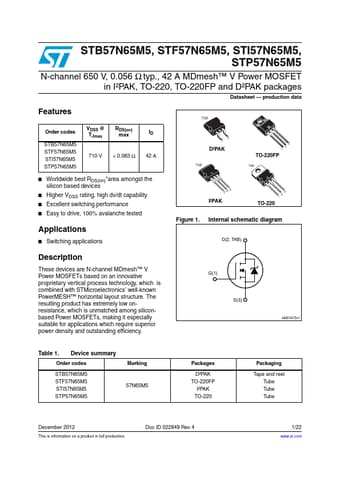

STI57N65M5 Datasheet, Mosfet, STMicroelectronics

STI57N65M5 Features

• Mosfet Order codes STB57N65M5 STF57N65M5 STI57N65M5 STP57N65M5 VDSS @ TJmax RDS(on) max 710 V < 0.063 Ω ID 42 A
• Worldwide best RDS(on)
• area amongst the silicon based de

PDF File Details

Part number:

STI57N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.29MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined

STI57N65M5 Application

• Applications
• Switching applications TAB 3 1 D²PAK TAB 3 2 1 TO-220FP TAB 123 I²PAK 3 2 1 TO-220 Figure 1. Internal schematic diagram
