STI6N80K5

N-channel Power MOSFET

STI6N80K5 Features

* Order codes VDS RDS(on)max ID PTOT STB6N80K5 STD6N80K5 800 V STI6N80K5 1.6 Ω 4.5 A 85 W STP6N80K5 123 I2PAK 3 2 1 TO-220 Figure 1. Internal schematic diagram D(2, TAB)

* Industry’s lowest RDS(on)

* Industry’s best figure of merit (FoM)

* Ultra low gate charge

STI6N80K5 General Description

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order .

STI6N80K5 Datasheet (697.72 KB)

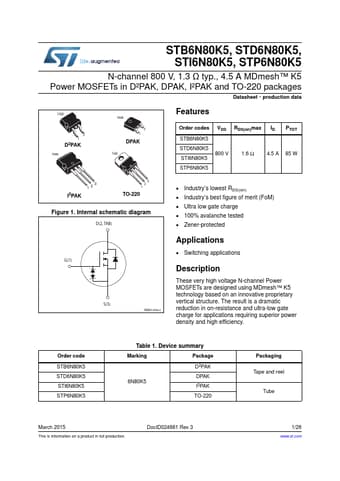

Preview of STI6N80K5 PDF

Datasheet Details

Part number:

STI6N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

697.72 KB

Description:

N-channel power mosfet.
STB6N80K5, STD6N80K5, STI6N80K5, STP6N80K5 N-channel 800 V, 1.3 Ω typ., 4.5 A MDmesh™ K5 Power MOSFETs in D²PAK, DPAK, I²PAK and TO-220 packages Datas.
