STIB1560DM2-L - Power MOSFET

STMicroelectronics

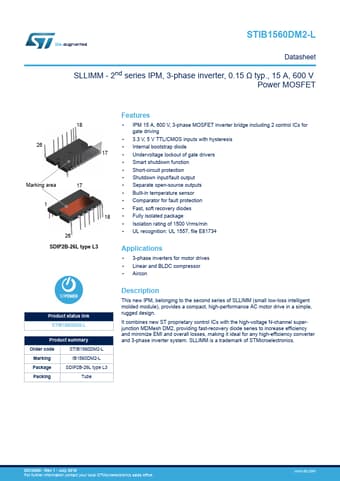

STIB1560DM2-L Datasheet Preview — Preview of STIB1560DM2-L PDF

Datasheet Details

Part number	STIB1560DM2-L
Manufacturer	STMicroelectronics ↗
File Size	860.33 KB
Description	Power MOSFET
Datasheet	STIB1560DM2-L-STMicroelectronics.pdf

STIB1560DM2-L Product details

Description

This new IPM, belonging to the second series of SLLIMM (small low-loss intelligent molded module), provides a compact, high-performance AC motor drive in a simple, rugged design.

Features

IPM 15 A, 600 V, 3-phase MOSFET inverter bridge including 2 control ICs for gate driving.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Internal bootstrap diode.
Undervoltage lockout of gate drivers.
Smart shutdown function.
Short-circuit protection.
Shutdown input/fault output.
Separate open-source outputs.
Built-in temperature sensor.
Comparator for fault protection.
Fast, soft recovery diodes.
