STIB1560DM2T-LZ

Power MOSFET

STIB1560DM2T-LZ Features

* IPM 15 A, 600 V, 3-phase MOSFET inverter bridge including 2 control ICs for gate driving

* 3.3 V, 5 V TTL/CMOS inputs with hysteresis

* Internal bootstrap diode

* Undervoltage lockout of gate drivers

* Smart shutdown function

* Short-circuit protecti

STIB1560DM2T-LZ General Description

This new IPM, belonging to the second series of SLLIMM (small low-loss intelligent molded module), provides a compact, high-performance AC motor drive in a simple, rugged design. It combines new ST proprietary control ICs with the high-voltage N-channel superjunction MDMesh DM2, providing fast-recov.

STIB1560DM2T-LZ Datasheet (797.07 KB)

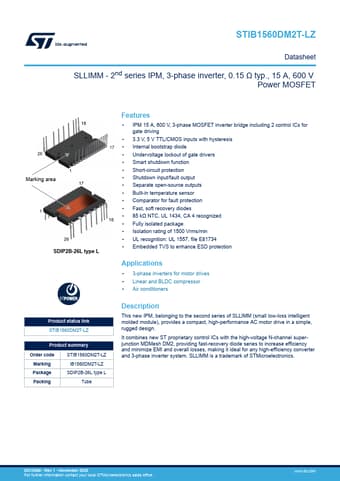

Preview of STIB1560DM2T-LZ PDF

Datasheet Details

Part number:

STIB1560DM2T-LZ

Manufacturer:

STMicroelectronics ↗

File Size:

797.07 KB

Description:

Power mosfet.
STIB1560DM2T-LZ Datasheet SLLIMM - 2nd series IPM, 3-phase inverter, 0.15 Ω typ., 15 A, 600 V Power MOSFET Marking area SDIP2B-26L type L Product s.
