STIL02-P5

AC inrush current limiter

STIL02-P5 Features

* Inrush current limitation circuit for off-line power supply Dual non-sensitive unidirectional switches in a single package Suitable when space and efficiency are critical Active after short AC line drop out with a boost converter High repetitive forward and reverse off-state voltage (700V) s s s s s

STIL02-P5 General Description

Pin out designation L Pt1 OUT Pt2 N Description AC Line (switch1) Pilot of power switch 1 Output (connected to Tab) Pilot of power switch 2 AC Neutral (switch 2) Position 1 2 3 4 5 BENEFITS Low consumption (Ipt= 20mA) High noise immunity: (dV/dt> 500V/µs @ Tj=150°C) Low reverse current losses Integ.

STIL02-P5 Datasheet (84.89 KB)

Preview of STIL02-P5 PDF

Datasheet Details

Part number:

STIL02-P5

Manufacturer:

STMicroelectronics ↗

File Size:

84.89 KB

Description:

Ac inrush current limiter.

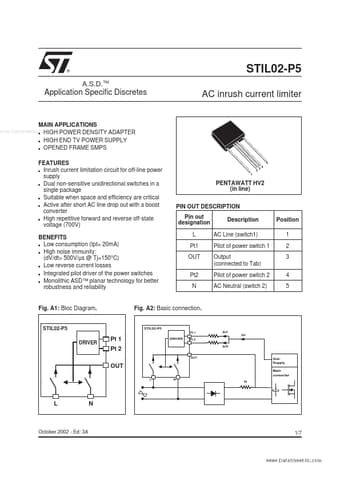

® STIL02-P5 A.S.D.TM Application Specific Discretes AC inrush current limiter www.DataSheet4U.com HIGH s s MAIN APPLICATIONS POWER DENSITY ADAPTE.
