STIL04-P5

AC inrush current limiter

STIL04-P5 Features

* Inrush current limitation circuit for off-line power supply Dual non-sensitive unidirectional switches in a single package Suitable when space and efficiency are critical Active after short AC line drop out with a boost converter High repetitive forward and reverse off-state voltage (700V) s s s s s

STIL04-P5 General Description

Pin out designation L Pt1 OUT Pt2 N Description AC Line (switch1) Pilot of power switch 1 Output (connected to Tab) Pilot of power switch 2 AC Neutral (switch 2) Position 1 2 3 4 5 BENEFITS Low consumption (Ipt= 20mA) High noise immunity: (dV/dt> 500V/µs @ Tj=150°C) Low reverse current losses Integ.

STIL04-P5 Datasheet (85.29 KB)

Preview of STIL04-P5 PDF

Datasheet Details

Part number:

STIL04-P5

Manufacturer:

STMicroelectronics ↗

File Size:

85.29 KB

Description:

Ac inrush current limiter.
® STIL04-P5 A.S.D.TM Application Specific Discretes AC inrush current limiter www.DataSheet4U.com HIGH s s MAIN APPLICATIONS POWER DENSITY ADAPTE.

📁 Related Datasheet

STIL02-P5 AC inrush current limiter (STMicroelectronics)

STIL AC INRUSH CURRENT LIMITER (ST Microelectronics)

STI100N10F7 N-Channel Power MOSFET (STMicroelectronics)

STI1010 Single-chip worldwide iDTV processor (STMicroelectronics)

STI10N62K3 N-channel Power MOSFET (STMicroelectronics)

STI10NM60N N-channel Power MOSFET (STMicroelectronics)

STI11NM60ND N-Channel Power MOSFET (STMicroelectronics)

STI11NM60ND N-Channel MOSFET (INCHANGE)

STI11NM80 N-CHANNEL Power MOSFET (STMicroelectronics)

STI120NH03L N-CHANNEL POWER MOSFET (ST Microelectronics)

TAGS

STIL04-P5 inrush current limiter STMicroelectronics

Image Gallery

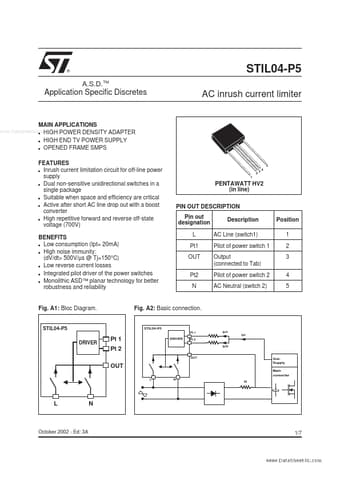

STIL04-P5 Datasheet Preview Page 2 STIL04-P5 Datasheet Preview Page 3
