STL110N10F7 - N-Channel Power MOSFET

STMicroelectronics

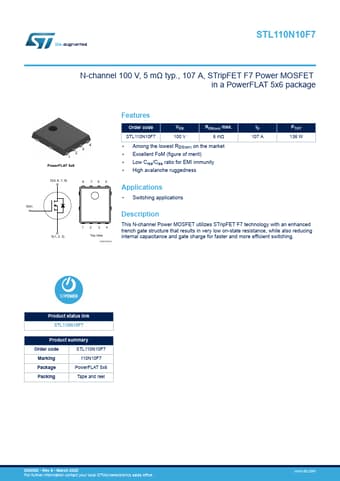

STL110N10F7 Datasheet Preview — Preview of STL110N10F7 PDF

Datasheet Details

Part number	STL110N10F7
Manufacturer	STMicroelectronics ↗
File Size	872.47 KB
Description	N-Channel Power MOSFET
Datasheet	STL110N10F7-STMicroelectronics.pdf

STL110N10F7 Product details

Description

S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.Product status link STL110N10F7 Product summary Order code STL110N10F7 Marking 110N10F7 Package PowerFLAT 5x6 Packing Tape and reel DS9392 - Rev 6 - March 2020 For further information contact your local STMi

Features

PowerFLAT 5x6 Order code VDS RDS(on) max. STL110N10F7 100 V 6 mΩ.
Among the lowest RDS(on) on the market.
Excellent FoM (figure of merit).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness ID 107 A PTOT 136 W D(5, 6, 7, 8) 8 76 5.
