STL117N4LF7AG Datasheet, MOSFET, STMicroelectronics

STL117N4LF7AG Features

• Mosfet Order code STL117N4LF7AG VDS 40 V RDS(on) max. 3.5 mΩ
• AEC-Q101 qualified
• Among the lowest RDS(on) on the market
• Excellent FoM (figure of merit)

PDF File Details

Part number:

STL117N4LF7AG

Manufacturer:

STMicroelectronics ↗

File Size:

408.35kb

Download:

📄 Datasheet

Description:

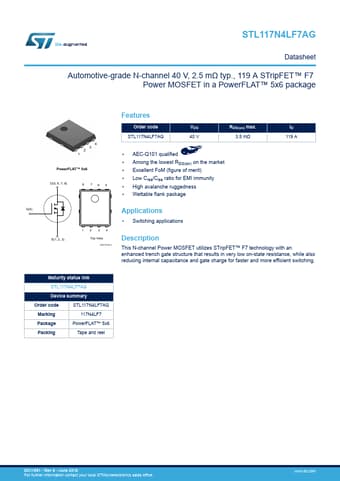

Automotive-grade n-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state

STL117N4LF7AG Application

• Applications
• Switching applications S(1, 2, 3) 12 34 Top View AM15540v2 Description This N-channel Power MOSFET utilizes STripFET™ F7
