STL11N3LLH6

N-channel Power MOSFET

STL11N3LLH6 Features

* Order code STL11N3LLH6 VDS 30 V RDS(on) max 7.5 mΩ ID 11 A

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power loss Applications

* Switching applications Description This device is an N-channel Power MOSFET developed using the ST

STL11N3LLH6 General Description

This device is an N-channel Power MOSFET developed using the STripFET™ H6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages. S(1, 2, 3) Order code STL11N3LLH6 1234 AM15810v1 Table 1: Device summary Marking Package 11N3L PowerFLA.

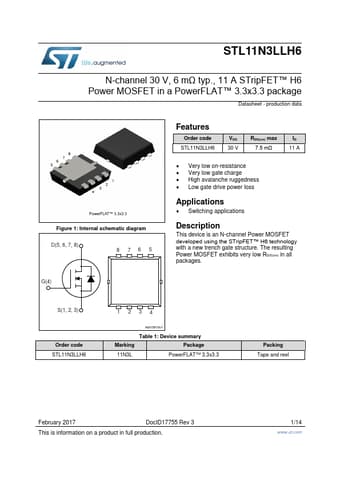

STL11N3LLH6 Datasheet (560.17 KB)

Preview of STL11N3LLH6 PDF

Datasheet Details

Part number:

STL11N3LLH6

Manufacturer:

STMicroelectronics ↗

File Size:

560.17 KB

Description:

N-channel power mosfet.
STL11N3LLH6 N-channel 30 V, 6 mΩ typ., 11 A STripFET™ H6 Power MOSFET in a PowerFLAT™ 3.3x3.3 package Datasheet - production data Figure 1: Internal.
