STL11N4LLF5

N-channel Power MOSFET

STL11N4LLF5 Features

* Order code STL11N4LLF5

* VDS 40 V RDS(on) max 9.7 mΩ ID 15 A Low gate charge Very low on-resistance High avalance ruggedeness PowerFLAT™ 3.3x3.3 Applications

* Switching applications Description This device is an N-channel Power MOSFET developed using STMicroelectronics’

STL11N4LLF5 General Description

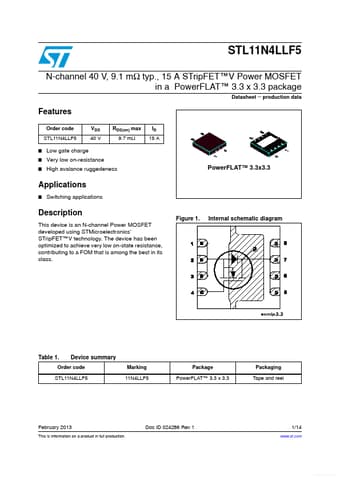

This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™V technology. The device has been optimized to achieve very low on-state resistance, contributing to a FOM that is among the best in its class. Figure 1. Internal schematic diagram Table 1. Device summary Marki.

STL11N4LLF5 Datasheet (1.17 MB)

Preview of STL11N4LLF5 PDF

Datasheet Details

Part number:

STL11N4LLF5

Manufacturer:

STMicroelectronics ↗

File Size:

1.17 MB

Description:

N-channel power mosfet.
