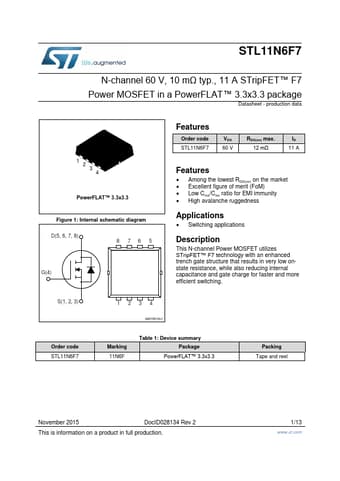

STL11N6F7 Datasheet, Mosfet, STMicroelectronics

STL11N6F7 Features

• Mosfet Order code STL11N6F7 VDS 60 V RDS(on) max. 12 mΩ ID 11 A Features
• Among the lowest RDS(on) on the market
• Excellent figure of merit (FoM)
• Low Crss/Ciss

PDF File Details

Part number:

STL11N6F7

Manufacturer:

STMicroelectronics ↗

File Size:

532.69kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

STL11N6F7 Application

• Applications
• Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate
