STL11N65M5 Datasheet, Mosfet, STMicroelectronics

STL11N65M5 Features

  • Mosfet Order code VDS @ Tj max. RDS(on) max ID STL11N65M5 710 V 0.530 Ω 8.5 A
  • Extremely low RDS(on)
  • Low gate charge and input capacitance
  • Excellent switching

PDF File Details

Part number:

STL11N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.01MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET based on MDmesh™ M5 innovative vertical process technology combined with the wellknown Power

Datasheet Preview: STL11N65M5 📥 Download PDF (1.01MB)

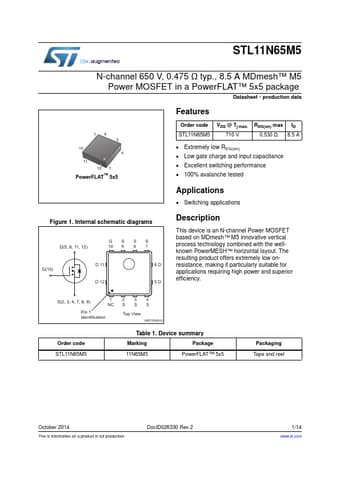

Page 2 of STL11N65M5 Page 3 of STL11N65M5

STL11N65M5 Application

  • Applications
  • Switching applications Figure 1. Internal schematic diagrams D(5, 6, 11, 12) GSSS 10 9 8 7 G(10) D 11 D 12 6D 5D Descr
