STL13DP10F6 Datasheet - STMicroelectronics

Dual P-CHANNEL POWER MOSFET

STL13DP10F6 Features

* 1 4 1 8 5 4 PowerFLAT™ 5x6 double island Figure 1. Internal schematic diagram Order code STL13DP10F6 VDS 100 V RDS(on) max. ID 0.18 Ω 3.3 A

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* High avalanche ruggedness

* Low gate dr

STL13DP10F6 General Description

This device is a dual P-channel Power MOSFET th developed using the 6 generation of STripFET™ DeepGATE™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on) in all packages. Order code STL13DP10F6 Table 1. Device summary Marking Packages 13DP10F6 Power.

STL13DP10F6 Datasheet (551.30 KB)

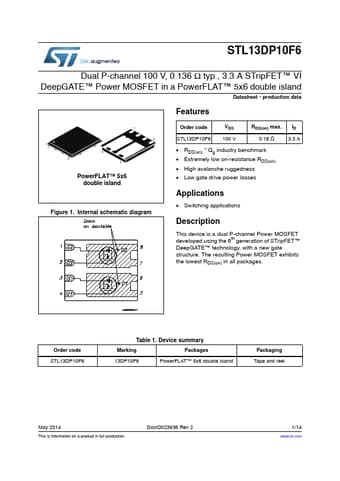

STL13DP10F6 Datasheet Preview — Preview of STL13DP10F6 PDF

Datasheet Details

Part number:

STL13DP10F6

Manufacturer:

STMicroelectronics ↗

File Size:

551.30 KB

Description:

Dual p-channel power mosfet.
STL13DP10F6 Dual P-channel 100 V, 0.136 Ω typ., 3.3 A STripFET™ VI DeepGATE™ Power MOSFET in a PowerFLAT™ 5x6 double island Datasheet - production da.
