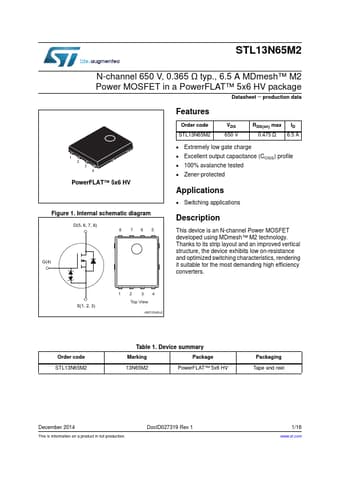

STL13N65M2 N-channel Power MOSFET

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(1,.

STL13N65M2 Features

* 1 2 3 4 PowerFLAT™ 5x6 HV Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) Order code STL13N65M2 VDS 650 V RDS(on) max ID 0.475 Ω 6.5 A

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-pro
