STL13N60DM2 Datasheet, Mosfet, STMicroelectronics

STL13N60DM2 Features

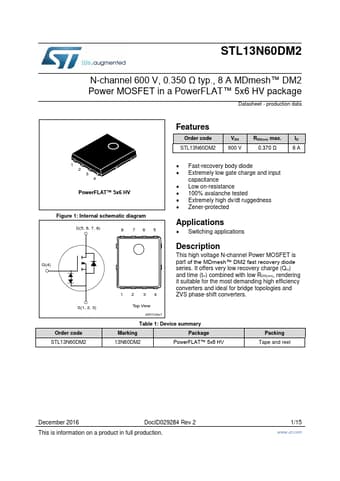

  • Mosfet Order code STL13N60DM2 VDS 600 V RDS(on) max. 0.370 Ω ID 8A 1 2 3 4 PowerFLAT™ 5x6 HV Figure 1: Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View

PDF File Details

Part number:

STL13N60DM2

Manufacturer:

STMicroelectronics ↗

File Size:

753.05kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Q

Datasheet Preview: STL13N60DM2 📥 Download PDF (753.05kb)
Page 2 of STL13N60DM2 Page 3 of STL13N60DM2

STL13N60DM2 Application

  • Applications
  • Switching applications Description This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode se
