STL19N60DM2

N-channel Power MOSFET

STL19N60DM2 Features

* 6  6  6

*  %RWWRPYLHZ '  3RZHU)/$7Œ[+9 Figure 1. Internal schematic diagram D(3) Order code VDS @ TJmax RDS(on)max STL19N60DM2 650 V 0.320 Ω ID 11 A

* Fast-recovery body diode

* Extremely low gate charge and input capacitance

* Low on-resistance R

STL19N60DM2 General Description

This high voltage N-channel Power MOSFET is part of the MDmesh DM2 fast recovery diode series. It offers very low recovery charge and time (Qrr, trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shift.

STL19N60DM2 Datasheet (652.82 KB)

Preview of STL19N60DM2 PDF

Datasheet Details

Part number:

STL19N60DM2

Manufacturer:

STMicroelectronics ↗

File Size:

652.82 KB

Description:

N-channel power mosfet.

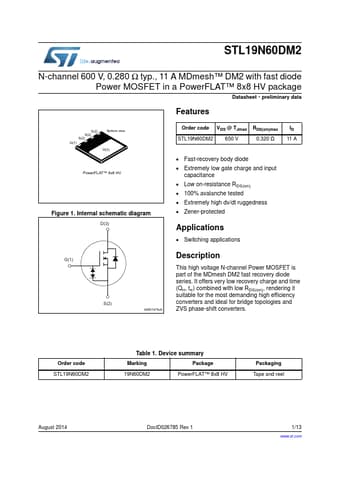

STL19N60DM2 N-channel 600 V, 0.280 Ω typ., 11 A MDmesh™ DM2 with fast diode Power MOSFET in a PowerFLAT™ 8x8 HV package Datasheet - preliminary data .
