STL19N60M6 Datasheet, Mosfet, STMicroelectronics

STL19N60M6 Features

  • Mosfet Order code VDS RDS(on) max. ID STL19N60M6 600 V 308 mΩ 11 A
  • Reduced switching losses
  • Lower RDS(on) per area vs previous generation
  • Low gate input

PDF File Details

Part number:

STL19N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

570.45kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The new MDmesh M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs

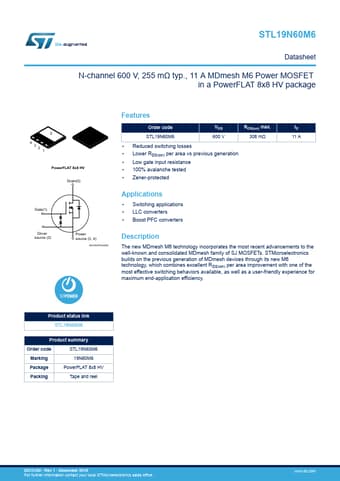

Datasheet Preview: STL19N60M6 📥 Download PDF (570.45kb)
Page 2 of STL19N60M6 Page 3 of STL19N60M6

STL19N60M6 Application

  • Applications
  • Switching applications
  • LLC converters
  • Boost PFC converters Description The new MDmesh M6 technology inco
