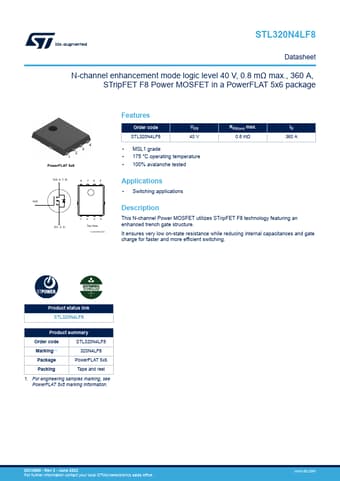

STL320N4LF8 Datasheet, Mosfet, STMicroelectronics

STL320N4LF8 Features

• Mosfet Order code STL320N4LF8 VDS 40 V
• MSL1 grade
• 175 °C operating temperature
• 100% avalanche tested RDS(on) max. 0.8 mΩ ID 360 A Applications
• Swi

PDF File Details

Part number:

STL320N4LF8

Manufacturer:

STMicroelectronics ↗

File Size:

612.44kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET F8 technology featuring an enhanced trench gate structure. It ensures very low on-state

STL320N4LF8 Application

• Applications
• Switching applications Description This N-channel Power MOSFET utilizes STripFET F8 technology featuring an enhanced trench
