STL3NK40 - Power MOSFET

ST Microelectronics

📥 Download Datasheet

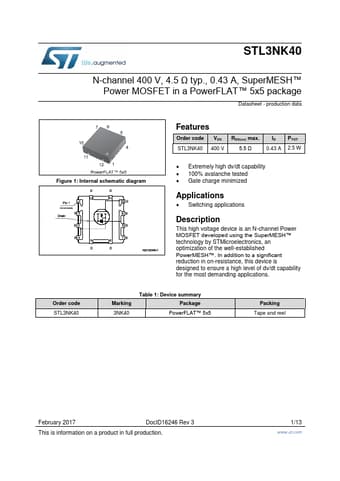

STL3NK40 Datasheet Preview — Preview of STL3NK40 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STL3NK40
Manufacturer: STMicroelectronics ↗
File Size: 508.46 KB
Datasheet: STL3NK40_STMicroelectronics.pdf
Description: Power MOSFET

STL3NK40 Product details

Description

The new SuperMESH™ series of Power MOSFETs is the result of further design improvements on ST's well-established stripbased PowerMESH™ layout.

Features

Type STL3NK40 VDSS 400 V RDS(on) max < 5.5 Ω ID(1) 2.3 A Pw (1) 75 W 1. The value is rated according to Rthj-f.
Extremely high dv/dt capability Improved ESD capability 100% avalanche rated Gate charge minimized Very low intrinsic capacitances Very good manufacturing repeatability Figure 1. Internal schematic diagram PowerFLAT™(5x5).
