STL3N65M2 N-channel Power MOSFET

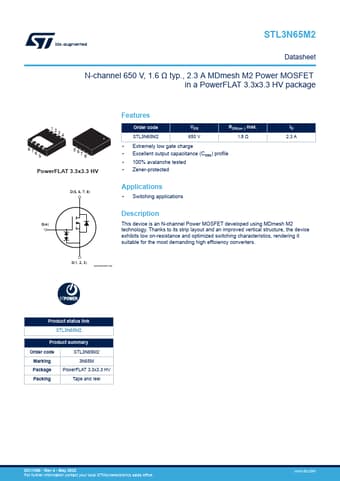

📥 Download Datasheet  Datasheet Preview Page 1

Description

STL3N65M2 Datasheet N-channel 650 V, 1.6 Ω typ., 2.3 A MDmesh M2 Power MOSFET in a PowerFLAT 3.3x3.3 HV package 123 4 876 5 567 8 PowerFLAT 3.3x3..
This device is an N-channel Power MOSFET developed using MDmesh M2 technology.

📥 Download Datasheet

Preview of STL3N65M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code VDS RDS(on ) max. STL3N65M2 650 V 1.8 Ω
* Extremely low gate charge
* Excellent output capacitance (Coss) profile
* 100% avalanche tested
