STL30N10F7 - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

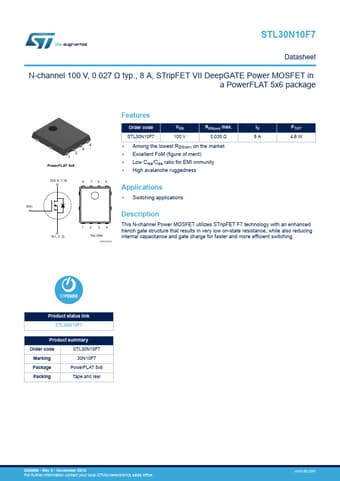

STL30N10F7 Datasheet Preview — Preview of STL30N10F7 PDF

Datasheet Details

Part number: STL30N10F7
Manufacturer: STMicroelectronics ↗
File Size: 896.29 KB
Datasheet: STL30N10F7-STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET

STL30N10F7 Product details

Description

S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.Product status link STL30N10F7 Product summary Order code STL30N10F7 Marking 30N10F7 Package PowerFLAT 5x6 Packing Tape and reel DS9999 - Rev 2 - November 2019 For further information contact your local STMi

Features

PowerFLAT 5x6 Order code VDS RDS(on) max. ID STL30N10F7 100 V 0.035 Ω 8A.
Among the lowest RDS(on) on the market.
Excellent FoM (figure of merit).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness PTOT 4.8 W D(5, 6, 7, 8) 8 76 5.
