STL31N65M5 N-channel Power MOSFET

This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbased.

STL31N65M5 Features

* 3 3 3 ' "OTTOMVIEW $ 0OWER&,!4˜X(6 Order code STL31N65M5 VDS 710 V RDS(on) max ID 0.162 Ω 15 A(1) 1. The value is rated according to Rthj-case and limited by package.

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

STL31N65M5-STMicroelectronics.pdf

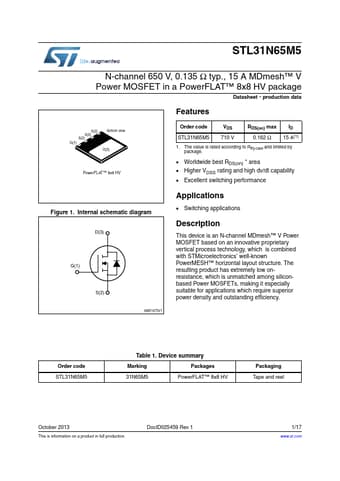

Preview of STL31N65M5 PDF
STL31N65M5 Datasheet Preview Page 2 STL31N65M5 Datasheet Preview Page 3

Datasheet Details

Part number:

STL31N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.19 MB

Description:

N-channel power mosfet.
