STL305N4LF8AG Automotive N-channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

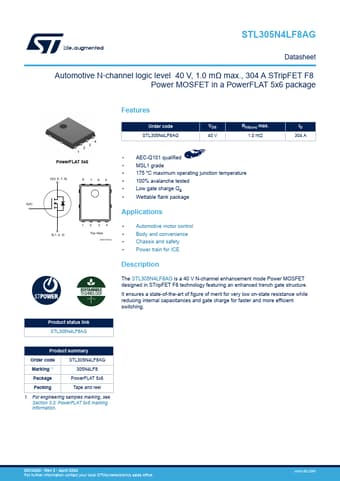

STL305N4LF8AG Datasheet Automotive N‑channel logic level 40 V, 1.0 mΩ max., 304 A STripFET F8 Power MOSFET in a PowerFLAT 5x6 package .
The STL305N4LF8AG is a 40 V N-channel enhancement mode Power MOSFET designed in STripFET F8 technology featuring an enhanced trench gate structure.

📥 Download Datasheet

Preview of STL305N4LF8AG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code VDS RDS(on) max. 4 3 2 1 PowerFLAT 5x6 D(5, 6, 7, 8) 8 76 5 STL305N4LF8AG 40 V 1.0 mΩ
* AEC-Q101 qualified
* MSL1 grade
* 175 °C maximum operating junction temperature
* 100% avalanche tested
* Low gate charge Qg
* Wettable flank p

Applications

* ID 304 A S(1, 2, 3) 12 34
* Top View
* AM15540v2
